When gable-top type liquor cartons and similar products are fed onto a conveyor belt by hand or a feeder, they are automatically separated at regular intervals by a wrapping machine separation conveyor, wrapped in shrink film in a pillow form, and then heat-shrunk in a shrink tunnel before being discharged.
Target Products
- paper carton beverage
feature
-
feature
This device receives gable-top liquor (sake) cartons or similar shaped products from an infeed conveyor, separates them at regular intervals using a separation conveyor, and then shrink wraps them with a specified film.
-
feature
The infeed conveyor has no attachments, enabling safe manual product feeding.
-
feature
The long sealer uses electrostatic seals as standard, which eliminates scrap film and significantly reduces electricity consumption compared to heat seals, leading to cost reductions and lower CO2 emissions.
-
feature
Safety and operability during setup have been improved by including a switch to stop the end sealer independently as standard equipment.
Examples of Uses
Paper-pack beverages
The main target is sake packs. Sake packs come in various sizes, ranging from 60 cm square to 95 cm square, and also vary in volume. In particular, sake packs are heavy products among wrapped items, so it is necessary to prevent damage and breakage caused by the products falling over during the wrapping process.
Product Specifications
- Packaging Capacity
- MAX. 30 packs/minute (depending on product and wrapping materials)
- Main Motor
- 200V 750W (AC servo): 3 units
- Power consumption
- 3-phase 200V 4.0kW (separate power supply required for shrink tunnel)
- Film Sensitivity
- 560 mm
- Cutting dimensions
- 110-560 mm
Selection Options

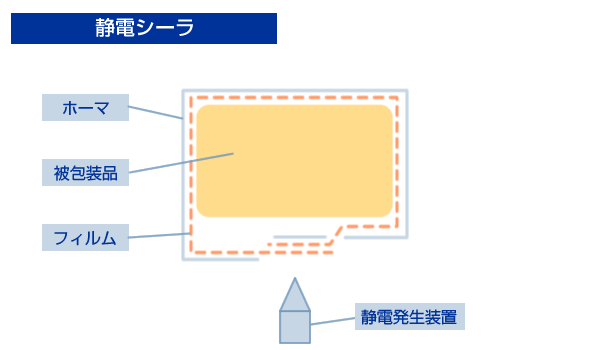

Electrostatic Long Sealer
Compared to fusion seals, it reduces the amount of film used and the number of consumable parts in the machine. Compared to wrap seals, the seal line is not visible, resulting in a beautiful finish on the sealed surface.

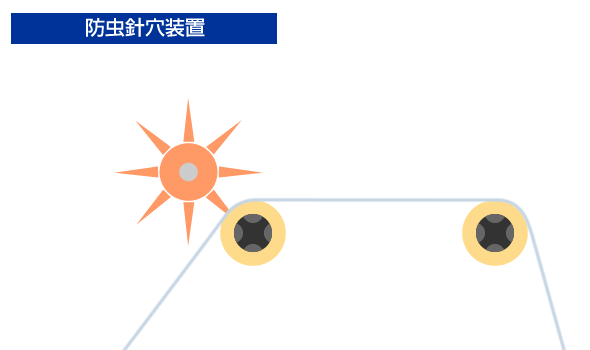

Minimum Pin Hole Device
For customers using printing film, this device makes countless small pin holes that do not interfere with the design.
One-touch Scrap Winding Device
This device winds scrap film without the need for a paper tube. When the scrap film accumulates, it can be removed with a single touch.
